Water is precious and vital to all life on our planet but there is only a limited amount of it. Most of us don’t think about water. We all have bad habits when using water. These habits mean that we often use more water than we need and therefore waste it, without thinking of the impact. This is damaging to the environment and can have an effect on our utility bills. Water efficiency is about reducing waste and thinking about the water we all use, changing bad habits into good habits. Conserving water not only helps preserve the precious and limited resource, but in turn provides a variety of benefits.

Everyone can save money by saving water. Treating and supplying water requires a lot of energy with its associated carbon emissions of course. Therefore, saving water will reduce your carbon footprint and help the environment. Everyone can do their bit to help protect our environment by not wasting water. Using water wisely within a community will help to achieve an environmentally sensitive place for people to live.

TT ECO-350 Watering System

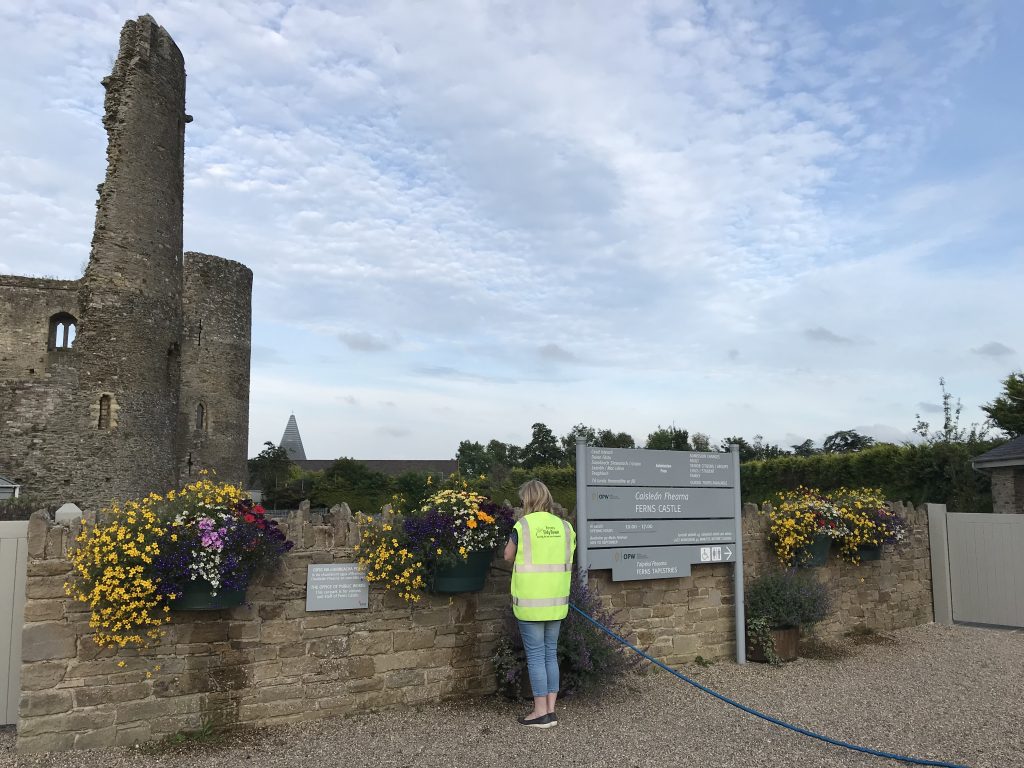

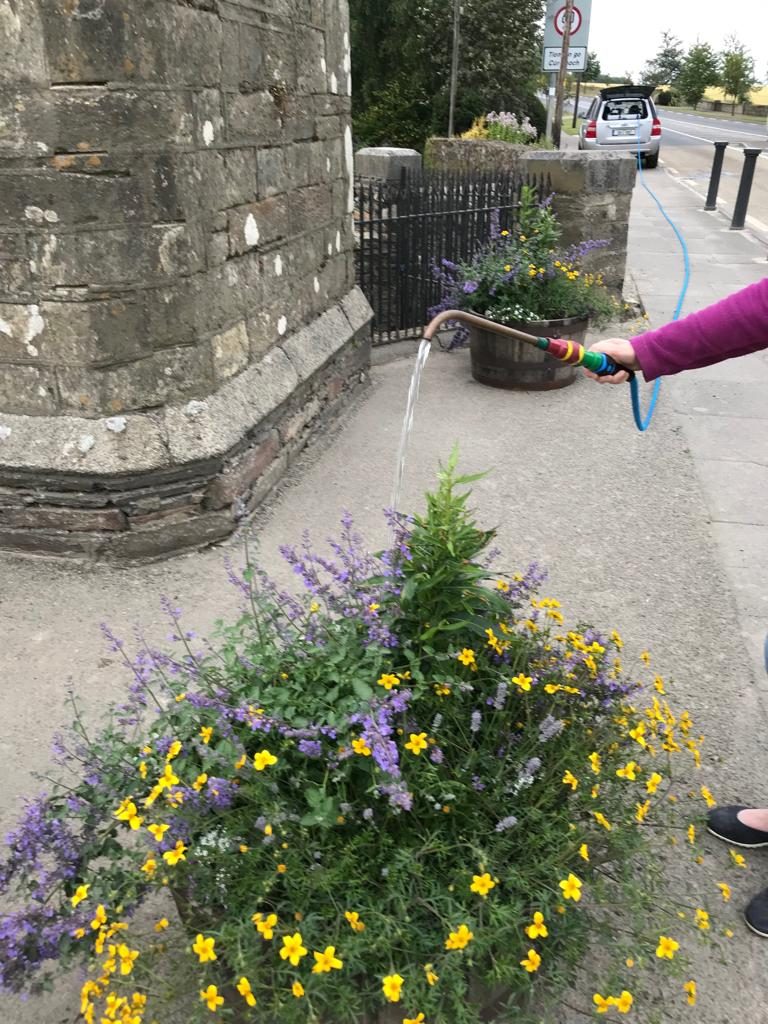

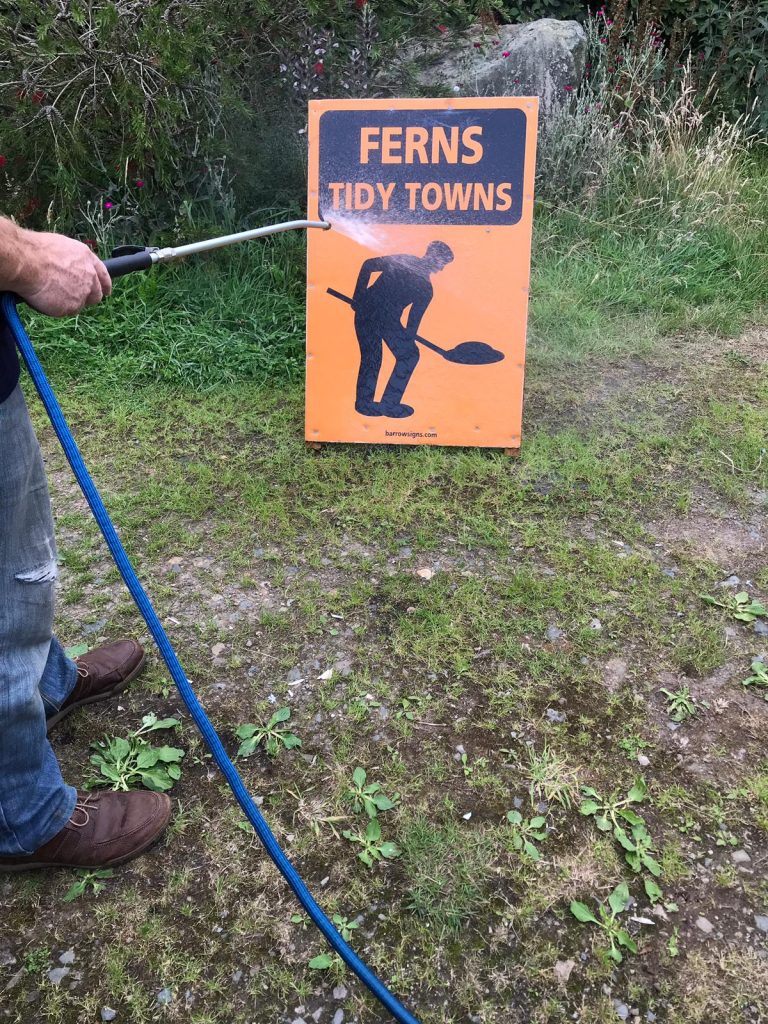

Ferns Tidy Towns have been struggling for years to properly water their plants and flowers around the village, especially in warm dry summer weather, with the result that they were not getting full value from their floral displays throughout the flowering months.

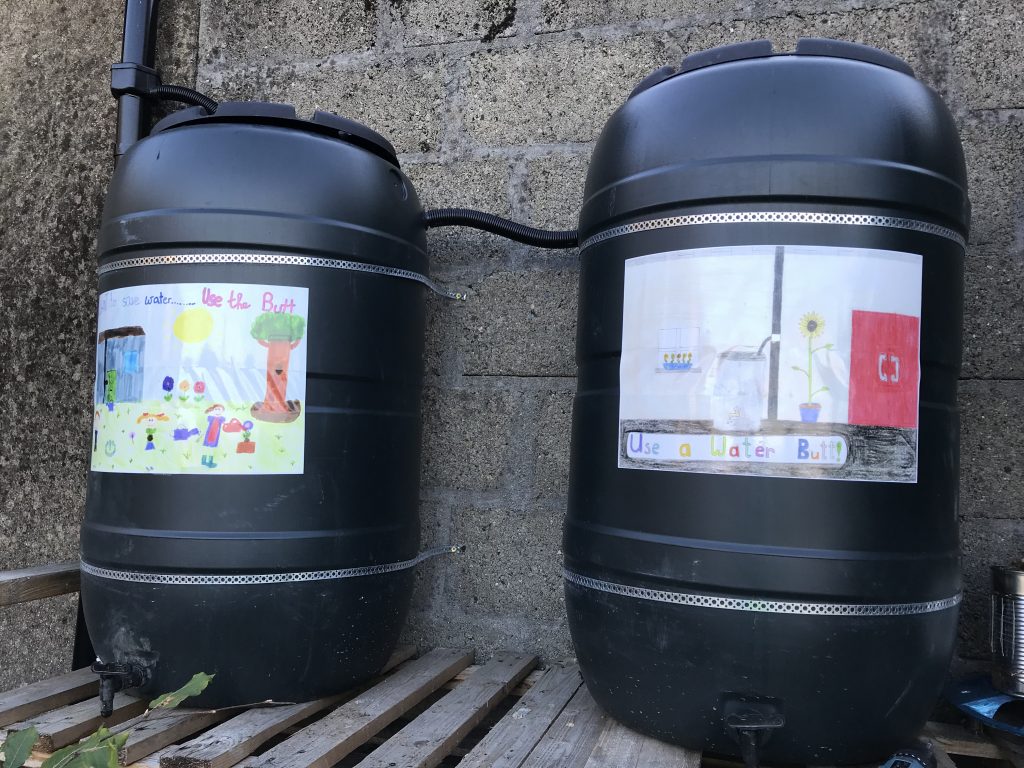

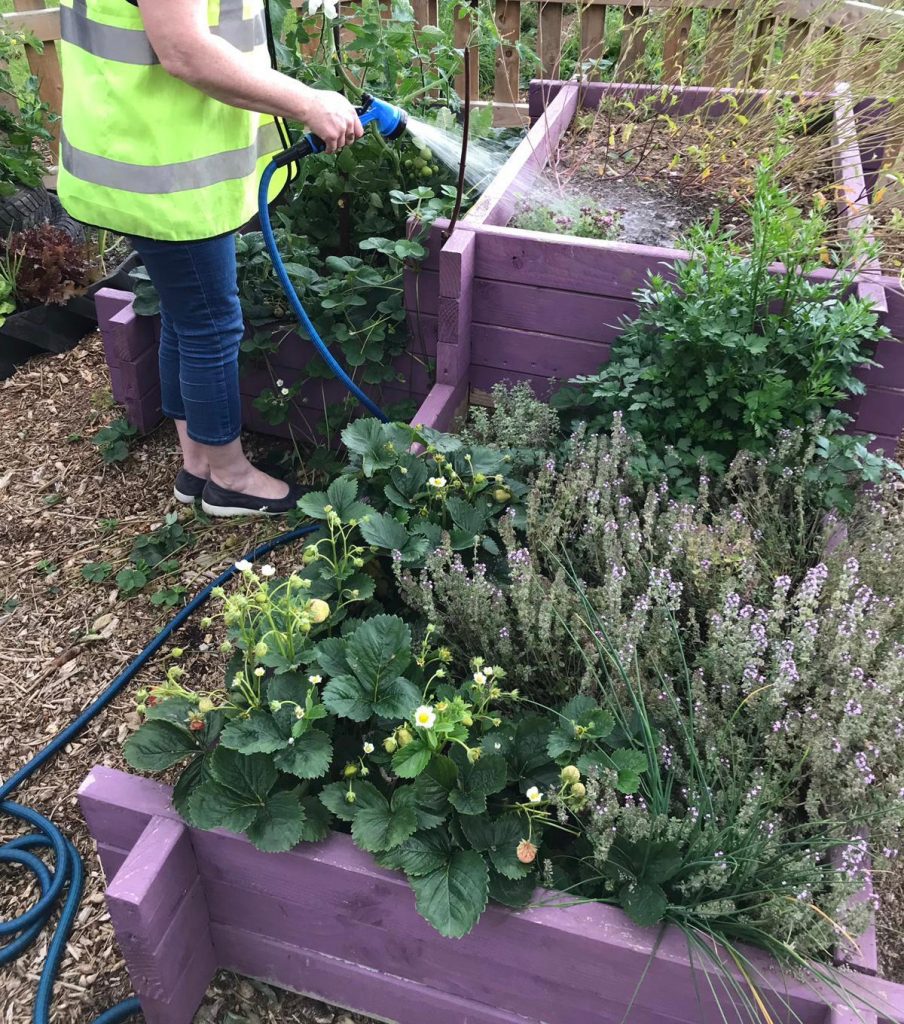

We worked alongside Ferns Tidy Towns to design and supply a bespoke, portable watering system to suit their watering needs, reduce water waste and make more efficient use of the rainwater collected in the water butts located at the community vegetable garden and other locations around the village.

The result was the TT ECO-350 watering system, the name inspired by the local Tidy Towns group but equally suitable for other community groups or individuals. The TT ECO-350 watering system gives you great flexibility in its operation and use. It allows you to fill the 350 litre tank from an external source such as a water butt, a rainwater harvesting storage unit or a natural spring for instance. For those with their own water well it can also be filled directly by hose through the filler cap on the tank but we do recommend using grey water whenever possible.

Operating Modes

There are also several options as to how the system operates. It can pump:

• directly from the external inlet to the hose outlet without using the tank storage (as shown in the image just above)
• from the external inlet to the tank (filling the tank)
• from the tank to the hose outlet (emptying the tank)
• from the bottom of the tank to the top of the tank (for mixing purposes, handy for ensuring a good mix of liquid fertiliser for instance)

When pumping from the external inlet the supplied suction hose (with filter) is used. The hose used is wire reinforced PVC hose – specifically designed for vacuum/suction.

Design Features

The tank is designed with internal baffles that limit water movement when being transported in a vehicle. The tanks are manufactured from semi-translucent medium-density polyethylene (MDPE) that is ideal for easily checking the water level within the tank. The tank has a spring-vented filler cap.

The pump is an on-demand marine grade pump with capacity to pump up to 15 litres per minute and it is self priming. The pump is powered through the cigarette lighter socket in your vehicle. The external inlet and hose outlet use high quality stainless steel quick-connect couplings with stop valves.

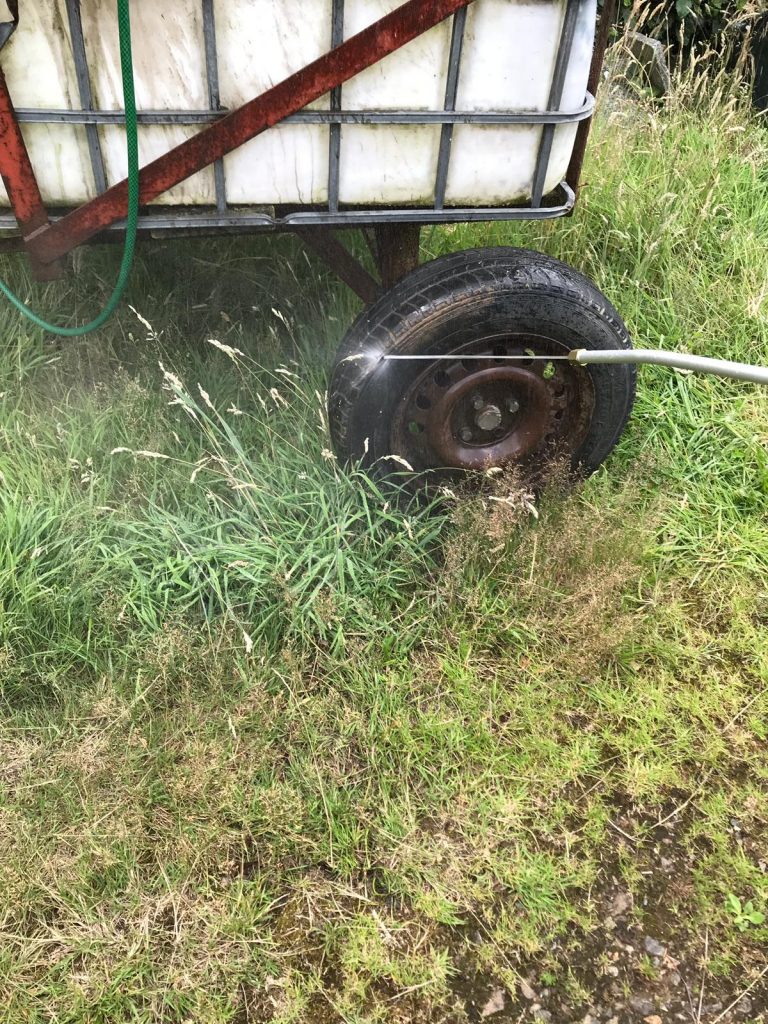

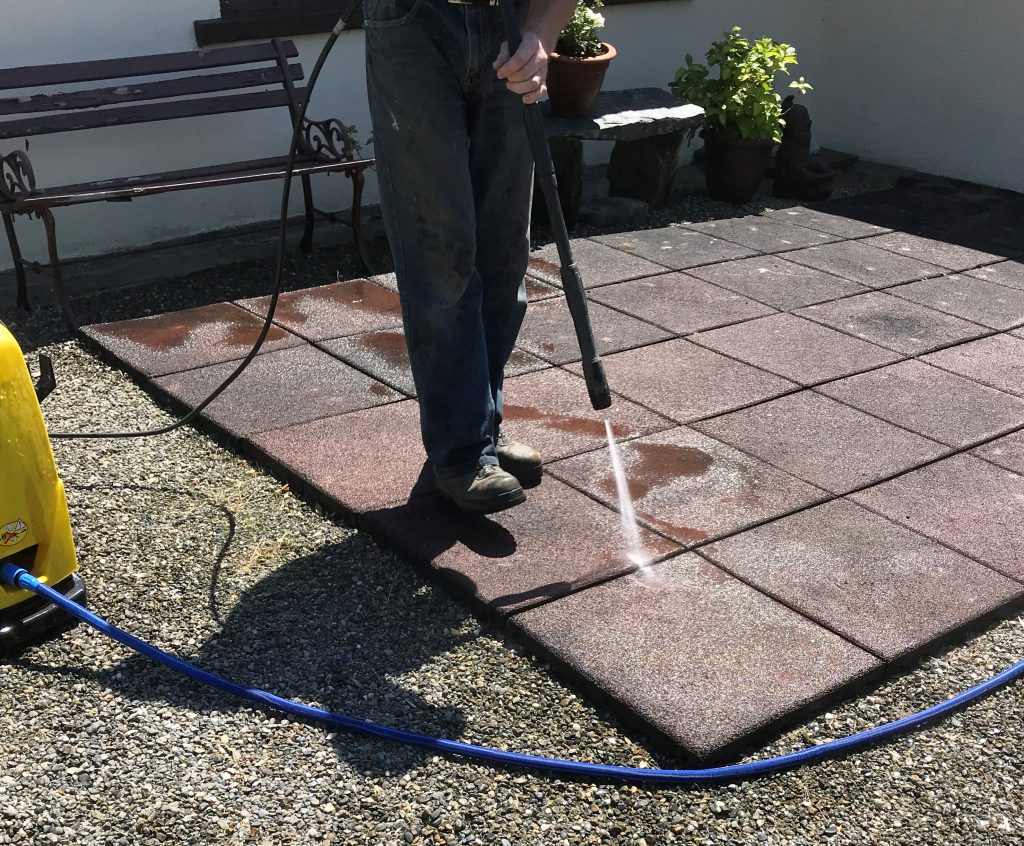

As well as the operating options outlined above the system can also be used to supply water for various applications, such as to a pressure washer for instance.

Multiple Uses

So, the TT ECO-350 watering system has several uses and is ideal for community groups such as Tidy Towns groups and Community Garden groups or individuals who want to conserve water by using it in a more efficient manner and avoid wasting it. Uses of the system include:

• Watering
• Wash-down
• Spraying
• Water Supply

Solutions to suit your application

Other tank sizes and bespoke solutions are available and a mobile 110 litre wheeled unit with battery and optional solar panel is in development.

Contact us

Please contact Eco Evolution for further details: info@EcoEvolution.ie

On a recent trip to London I decided to visit the world-famous Regent’s Park. There are several breathtaking gardens in Regent’s Park to enjoy. These include Queen Mary’s Garden, a glorious rose garden, St John’s Lodge Gardens, the Community Wildlife Garden and the beautiful tranquil Avenue Gardens. Lakes, wildflower gardens, secluded woodlands and meadows can also be seen. It is also home to London Zoo.  This world renowned conservation centre has over 650 species of fauna from all over the world and is the world’s first scientific zoo. Being a nature enthusiast the garden that appealed to me most was the Wildlife garden.

Just a short walk from Baker Street tube, on the South West side of Regent’s Park you will find the Regent’s Park Wildlife Garden.  The garden was constructed during 2006 and 2007 by the ‘Wild in the Parks’ team. It is a wildlife friendly community garden, designed, constructed and planted with help from local schools, community groups and volunteers. The garden aims to demonstrate how you can encourage and support wildlife in your own urban garden, even if it is only small, or if you don’t even have one.

The front garden planted with a selection of low growing plants was designed to show that if you have a car you can park it in front of your house without the need for a concrete drive. Front gardens are disappearing from urban areas at an alarming rate which means there are fewer places for wildlife to shelter and feed.

Tucked away in a nice sheltered corner of the garden surrounded by trees, hedging and wild flowers there is an insect hotel built out of recycled materials that was made by local school children.  The insect hotel helps to  increase the number of beneficial insects in the garden which in turn improves its biodiversity.  Much of the garden is also left to grow wild to provide cover for birds and to encourage butterflies and bees.

The main aim of the Regent’s Park Wildlife Garden is to provide a safe and friendly environment for people to visit and wildlife to flourish. Their non-intrusive gardening policy avoids the use of chemicals wherever possible, to use native plants that need little water to avoid draining precious resources and enrichment that includes a pond and bog to further the biodiversity of the garden. Ponds play an important role in the biodiversity of any wildlife garden. They provide breeding space for dragonflies, frogs and toads and are source of water for birds and mammals. If you have space, think about creating your own.

Local school children have been particularly busy with the creation of artwork which has been incorporated into the garden’s information boards. The boards provide information on how to increase the species of wildlife in the garden. Planting shrubs with berries to feed the birds in the Winter and leaving dead wood and fallen leaves for hibernation are just some of the advice shown on the colourful information boards.

Another piece of artwork provides a central focus by the lake, an 8 meter long newt sculpture constructed from earth, turf and wild flower plugs and giving the impression that he has just crawled out of the water.

The wildlife garden also has an interesting interactive sound bench powered by a solar photovoltaic panel. Visitors can sit and listen to tales from the local community on how their  parks are such special places. Over the years the amount of wildlife attracted to the garden continues to rise with finches, woodpeckers, long tail, blue and great tits all visiting with great regularity. Bird boxes, bat boxes and bird feeders are dotted throughout the garden to help encourage and increase wildlife visitors.

On the day of our visit the sun was shining through the autumnal leaves making this peaceful haven in the middle of London a delight to be in. Many of the plants were turning to seed and coming to the end of their flowering season. With the colder weather just around the corner the community volunteers were busy preparing for the Winter months ahead by ensuring to provide suitable hibernation habitat for the many species of mammals, invertebrates and beneficial insects to help enrich the local ecosystem, cleaning out and erecting new bird boxes, tidying parts of the pond and composting the garden waste.

The garden is open all year round to the public during daylight hours. This tranquil oasis in the heart of London is the perfect place to escape for a few minutes or hours and watch nature do it’s dazzling thing!  Cycling enthusiasts will be happy to hear that there’s a bike docking station just beside the entrance to the wildlife garden. A great way to get around to explore and discover the delights that the 410 acre Regent’s Park has to offer.
