18 Nov, 2009 By Mary

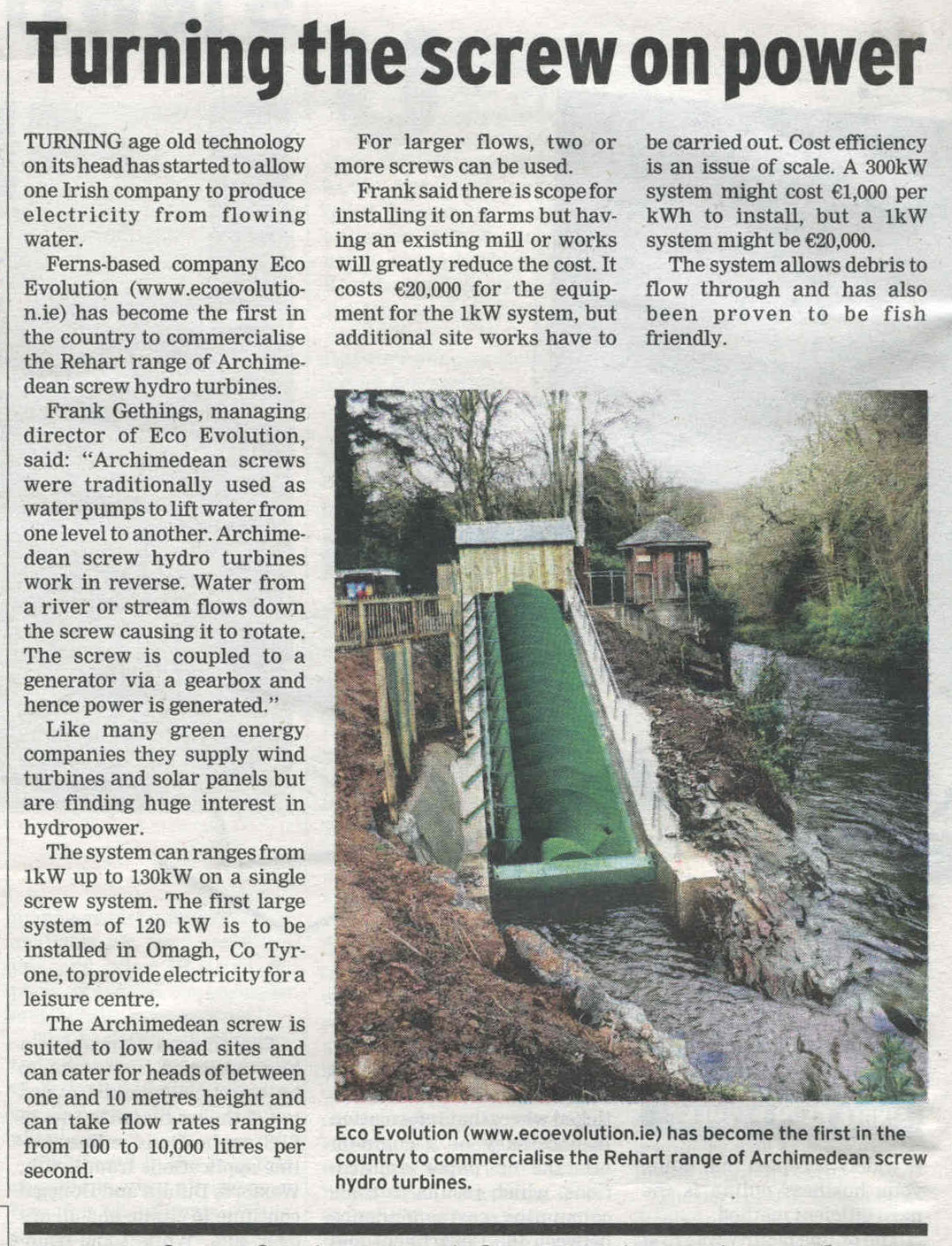

Eco Evolution featured in The Farmers Journal (14 Nov ’09)

Turning the screw on power

Turning age old technology on its head has started to allow one Irish company to produce electricity from flowing water.

Ferns based company Eco Evolution (www.EcoEvolution.ie) has become the first in the country to commercialise the Rehart range of Archimedean screw hydro turbines.

Frank Gethings, managing director of Eco Evolution, said “Archimedean screws were traditionally used as water pumps to lift water from one level to another. Archimedean screw hydro turbines work in reverse. Water from a river or stream flows down the screw causing it to rotate. The screw is coupled to a generator via a gearbox and hence power is generated.”

Like many green energy companies they supply wind turbines and solar panels but are finding huge interest in hydropower.

The system can range from 1kW up to 130kW on a single screw system. The first large system of 120kW is to be installed in Omagh, Co. Tyrone, to provide electricity for a leisure centre.

The Archimedean screw is suited to low head sites and can cater for heads of between one and 10 metres height and can take flow rates ranging from 100 to 10,000 litres per second.

For larger flows, two or more screws can be used.

Frank said there is scope for installing it on farms but having an existing mill or works will greatly reduce the cost. It costs €20,000 for the equipment for the 1kW system, but additional site works have to be carried out. Cost efficiency is an issue of scale. A 300kW system might cost €1,000 per kWh to install but a 1kW system might be €20,000.

The system allows debris to flow through and has also been proven to be fish friendly.

Farmers Journal - 14 November 2009

18 Nov, 2009 By Mary

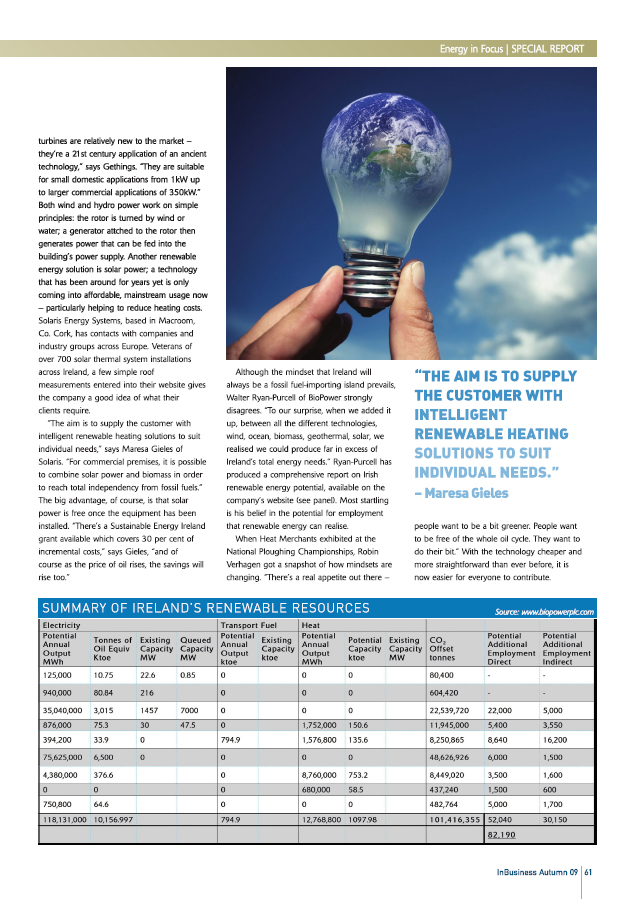

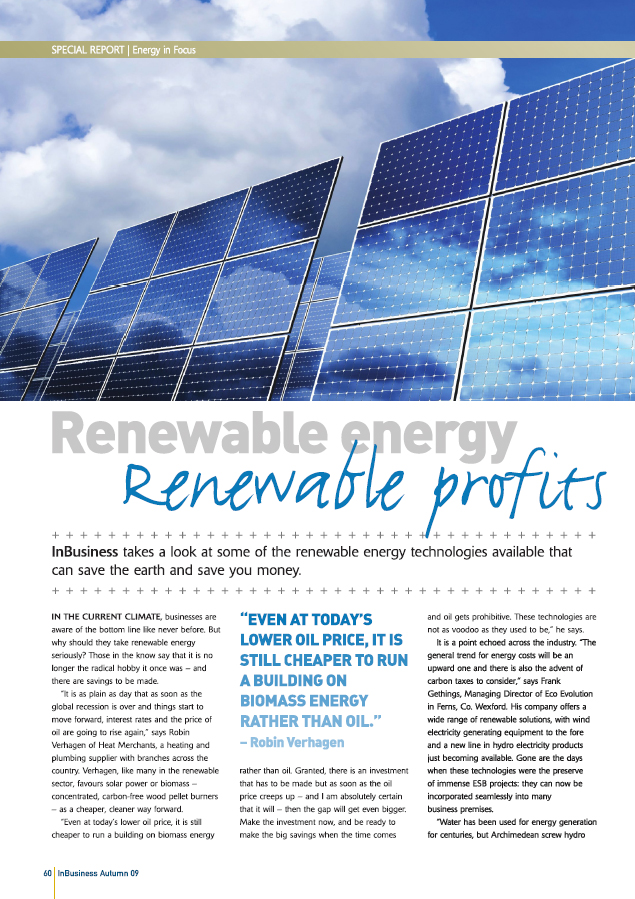

Eco Evolution featured in ‘In Business Magazine’

“… It is a point echoed across the industry. ”The general trend for energy costs will be an upward one and there is also the advent of carbon taxes to consider,” says Frank Gethings, Managing Director of Eco Evolution in Ferns, Co. Wexford. His company offers a wide range of renewable solutions, with wind electricity generating equipment to the fore and a new line in hydro electricity products just becoming available. Gone are the days when these technologies were the preserve of immense ESB projects: They can now be incorporated seamlessly into many business premises.

“Water has been used for energy generation for centuries, but Archimedean screw hydro turbines are relatively new to the market – they’re a 21st century application of an ancient technology,” says Gethings. “They are suitable for small domestic applications from 1kW up to larger applications of 350kW.” Both wind and hydro power work on simple principles: the rotor is turned by wind or water; a generator attached to the rotor then generates power that can be fed into the building’s power supply. Another renewable energy solution is solar power; a technology that has been around for years yet is only coming into affordable, mainstream usage now – particularly helping to reduce heating costs…”

Irish Chambers1Irish Chambers2

22 Oct, 2009 By Mary
Eco Evolution Pioneers Fish-Friendly Hydro Generation

Ferns company sees green opportunity

The two 150kW turbines at the Landustrie factoryA FERNS-BASED company has become the first company in the country to commercialise a range of hydro-turbines to produce electricity from water flow.

Eco Evolution has been appointed the main agents in Ireland for Mann Power Consulting Ltd., who are leading specialists in the area.

Mann Power is the sole UK authorised dealer for the Rehart range of Archimedean screw hydro turbines that are manufactured in Germany.

Rehart are leaders in the field of mechanical engineering in Germany with a 25-year history of excellence. This sustainable technology will allow Irish home and business owners to produce energy in a more eco-friendly way.

“We are absolutely delighted to be working with Mann Power and we are looking forward to a very exciting future together,” says Frank Gethings, managing director of Eco Evolution.

“While water has been used for energy generation for centuries, Archimedean screw hydro turbines are relatively new to the market, a 21st century application of an ancient technology,” explains Mr. Gethings.

Archimedean screws were traditionally used as water pumps to lift water from one level to another.

Archimedean screw hydro turbines work in reverse, water from a river or stream flows down the screw causing it to rotate, the screw is coupled to a generator via a gearbox and hence power is generated.

The Archimedean screw is suited to low head sites and can cater for heads of between one metre and ten metres in height and can take flow rates ranging from 100 litres per second to 10,000 litres per second. For larger flows two or more screws can be used.

“They have many advantages over the more traditional types of hydro turbines; the most important of these probably being the fact that they are fish friendly, also leaves and debris simply pass through the turbine with no fine screening required.

They are also highly efficient across a large flow variation, with a hydraulic efficiency of 87 per cent and a ‘water to wire’ efficiency of 77 per cent. They are suitable for small domestic applications from 1kW up to larger commercial applications of 350kW.”

Eco Evolution specialises in consultancy and design, supply and installation of renewable energy technologies, not only hydro electricity generation but also Wind Turbines, Solar Thermal, Solar Photovoltaic, Heat Pumps and Heat Recovery Ventilation.

Frank Gethings is originally from Ferns and studied Electronic Engineering at Dublin City University from 1985 to 1989.

After working as an engineer for 17 years, he was made redundant in 2006, giving him the opportunity to set up his own business.

“I had an interest in renewable energy since my early school days and it seemed like it was an industry with a bright future, it was also well suited to my experience and engineering background.”

After two years of intensive research, training and cherrypicking products, Eco Evolution started trading in September 2008. The company is codirected by Frank and his wife, Mary.

“At the moment we have a few exciting prospects in the pipe line.

Our products are mainly top end of the market, they were chosen because our research showed that they were the best quality and best performing products on the market, but they are not necessarily the most expensive.

“We are fully committed to providing energysaving solutions to Irish customers by offering the very latest and most technologically advanced renewable energy products on the market today.”

Articles:  Wexford Echo  , Enniscorthy Echo ,  Gorey Echo

18 Aug, 2009 By Mary
Archimedean Screw Hydro Turbine – Fish friendly generation

Archimedean Screw – Fish-friendly generation

What site?
·  Fall (head) of 1m to 10m
·  Flow from 100 l/s to 10,000 l/s

Why an Archimedean Screw?
·  High level of efficiency maintained across a wide flow variation
·  Environment Agency approved
·  No need for expensive fine screening
·  Robust, simple machinery – low maintenance
·  Minimal construction work necessary
·  Dry running and debris in the water flow do not harm the machinery
·  No complex control system required
·  Design life: 25 – 40 years

Efficiency
·  Achieves an efficiency of up to 87%
·  ‘Water to wire’ efficiency of 77%
·  Highly efficient down to 20% of maximum flow

Steel Trough
Steel Trough

Fish friendly
Extensive fish passage tests have conclusively demonstrated that the large water chambers and slow rotation of the Archimedean Screw allow fish of all sizes, and debris safe passage through the turbine. As a result, the Environment Agency has agreed that no screening is required. Literally thousands of fish passages have been monitored and recorded using underwater cameras at the intake, inside the chamber of the Screw itself and at the outflow to assess the effect of the Screw on salmonids (including smolts and kelts), brown trout and eels. The trials looked at fish passage across a broad spectrum of sizes and turbine speeds, possibly the most impressive of which was the safe passage of a kelt measuring 98cm in length and weighing 7.6kg. In addition, behavioural and migrational patterns across the species have been shown to be entirely unaffected by the turbine. The implication of these findings is extremely positive for the economics of micro-hydro. Sites previously written off for hydro development owing to fish protection issues can be revisited, and the cost of installation for an Archimedean Screw turbine will be significantly reduced by the requirement for only minimal screening.

Fish friendly Archimedean Screw hydro turbine
Fish friendly Archimedean Screw hydro turbine

One year on -a customer testimonial
Mark Simpson, owner of the River Dart Country Park at Ashburton in Devon decided to install an Archimedean screw to replace an old Kaplan system which had been beset by problems in the past. “The screw suits this environment so well, particularly given the vagaries of the River Dart and the way that it copes with the debris and leaves which were a problem with the old Kaplan system.” The new system produces a maximum of 48kW, more than enough to run all the visitor facilities on site, Holme Park House (used as a conference centre and wedding venue) plus two visitor bungalows. “We have been running through the summer at pretty near full capacity (45-48kW). During the dry spell it did drop down to 35kW, purely because of the limited amount of water we could take out of the river and down the leat.” Mark is a great advocate of the Archimedean screw as a satisfied customer: “The power output is more than I budgeted for or envisaged in the planning stages and I’m delighted at how the whole scheme has come together”.
